Mobira
QUARTZ CHRYSTAL SPECIFICATION| Specification | SAL9 |
|---|---|

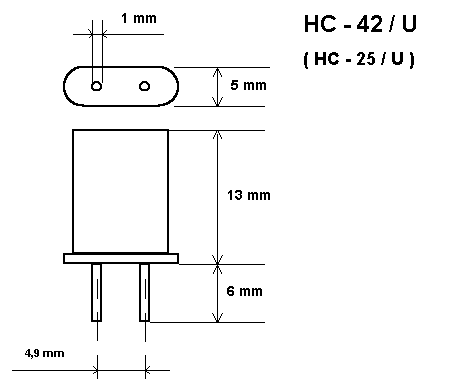

| Type of holder | HC-25CW / HC-42/u |
| Frequency range | 30 ... 77 MHz |
| Mode of vibration | 3.overtone |
| Resonance | Series |
| Capacitance | |
| Calibration tolerance | + - 5 ppm |
| Reference temperature | + 25 °C |
| Temperature stability | + - 10ppm |
| Temperature range | - 25 ... + 70 °C |
| Motional capacitance | 2 fF + - 20 % |
| Pin to pin capacitance | < 7 pF |
| Spurious suppression | 6 dB min |
| Test set calibration | 100uW/33 ohm |
| Equivalent series resistance | < - 40 ohm |
